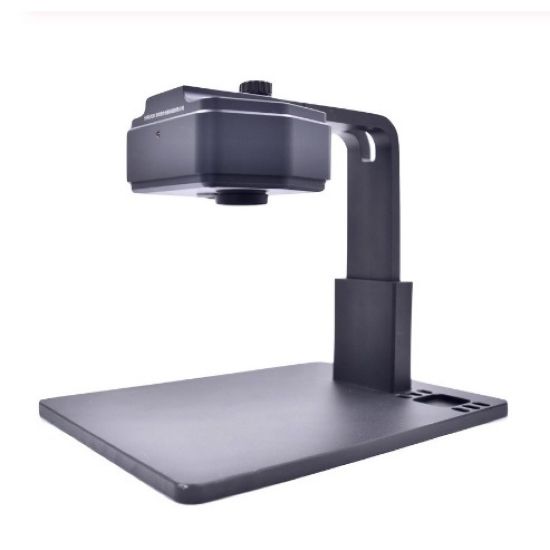

QianLi Thermal Imager For Mobile Phone PCB Troubelshoot

Name: QianLi Thermal Imager For Mobile Phone PCB Troubelshoot
SKU: TOO00305
Availability: InStock

Hersteller: QianLi

Artikelnummer: TOO00305

You need to log in to view the price details.

Produktspezifikation

Attributbezeichnung	Attributwert
Produktmerkmale
Detector Type	Uncooled Vox Detector, Uncooled Vox Detector
Resolution	160X120
Spectrum Range	7.5-13.5 Î¼m, 7.5-13.5 Î¼m
Lens Angel	57Â°Â44Â°, 57Â°Â44Â°
Output Mode	Visible / Infrared Thermal Imaging / Infrared Fusion, Visible / Infrared Thermal Imaging / Infrared Fusion
Video Output	RJ45, RJ45
Storage	Standard 32G Micro SD Card, Standard 32G Micro SD Card
Video Storage Format	8Bit H264/14Bit TIFF, 8Bit H264/14Bit TIFF
Image Storage Format	JPEG/TIFF, JPEG/TIFF
Bracket Dimension	38Cmx25cmx36mm, 38Cmx25cmx36mm
Weight	2.8Kg Include Bracket, 2.8Kg Include Bracket
Installation	Detachable Installation
Input Power Voltage	5-26 VDC, 5-26 VDC
Consumption	2.2W (Max.3), 2.2W (Max.3)
Operation Temperature Range	0Â°C ~ 50Â°C, 0Â°C ~ 50Â°C
Storage Temperature Range	-20Â°~ 60Â°C, -20Â°~ 60Â°C
Humidity	95% Relative Humidity, 95% Relative Humidity
Temperature Function	Full Temperature Measurement, Full Temperature Measurement
Temperature Accuracy	Â±2Â°C, Â±2Â°C
Temperature Range	-10Â°C-150Â°C, -10Â°C-150Â°C
Produktart	Microscopes, Microscopes
Microscope Type	Microscope Cameras, Microscope Cameras
